RTN 905 microwave transmission IDU 905 1E

  • 1
  • 2

Model Number : OptiX RTN 905

Place of Origin : China

Brand Name : Huawei

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

OptiX RTN 905 Chassis : 1U

RF configuration mode 1 : 1+0

RF configuration mode 2 : 1+1 HSB/FD/SD (NE cascading)

RF configuration mode 3 : XPIC (NE cascading)

ODU type 1 : XMC-2

ODU type 2 : XMC-2H

ODU type 3 : XMC-3

ODU type 4 : XMC-3W

Contact Now

Product Overview

OptiX RTN 905 microwave transmission IDU 905 1E

BOM
Model
Enhanced Combining and Distribution Unit
52440746
EHD0AA301
Microwave Accessory,Coupler,6G,UDR70,3dB XMC,With English doc
52440559
EHD0CB301
Microwave Accessory,Coupler,7&8G,UBR84,3dB XMC,With English doc
52440645
C11B03RRC
Microwave Accessory,Coupler,10/11G,UBR100,3dB XMC,With English doc
52440570
EHD0FD301
Microwave Accessory,Coupler,13G,UBR120,3dB XMC,With English doc
52440561
EHD0GE301
Microwave Accessory,Coupler,15G,UBR140,3dB XMC,With English doc
52440572
EHD0HF301
Microwave Accessory,Coupler,18G,UBR220,3dB XMC,With English doc
52440563
EHD0IF301
Microwave Accessory,Coupler,23G,UBR220,3dB XMC,With English doc
52440597
EHD0JF301
Microwave Accessory,Coupler,26G,UBR220,3dB XMC,With English doc
52440714
EHD0KG301
Microwave Accessory,Coupler,28G,UBR320,3dB XMC,With English doc
52440716
EHD0LG301
Microwave Accessory,Coupler,32G,UBR320,3dB XMC,With English doc
52440599
EHD0MG301
Microwave Accessory,Coupler,38G,UBR320,3dB XMC,With English doc
52440637
EHD0NH301
Microwave Accessory,Coupler,42G,UG383/U-R400,3dB XMC,With English doc

Technical Specifications

The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

IDU 905
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

IDU 905 Item
Description
Chassis height
1U
Extended subcard
Supported
The maximum number of radio directions
20
Service interface
4 x GE electronic interface
4 x GE/FE optical interface or GE electrical interface (SFP)b
2 x 2.5GE optical interface(SFP+/SFP)c
16 x E1 interface
1 x multifunction cascading interfacea, b
1 x E1 services cascading interfaceb
2 x STM-1 interface
Radio type
Integrated IP radio (E1 + Ethernet)
Integrated IP radio (STM-1 + Ethernet)
SDH radio
Highest modulation
2048QAM
Number of radio directions
1
RF configuration mode
1+0
1+1 HSB/FD/SD (NE cascading)
XPIC (NE cascading)

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.
The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.

RTN XMC ODUs that the OptiX RTN 905 supports

ODU type
Frequency band
Highest-order Modulation
Channel spacing
XMC-2
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz
2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E)
1024QAM (6/10/10.5/11/26/28/32/42 GHz)
256QAM (7/8 GHz Normal)
3.5/7/14/28/40/50/56 MHz
XMC-2H
6/7/8/11 GHz
2048QAM
7/14/28/40/56 MHz
XMC-3
7/8/11/13/15/18/23/26/28/32/38 GHz
2048QAM
7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/32/38 GHz)
XMC-3W
7/8/13/18/15/23 GHz
2048QAM
7/14/28/40/56 MHz

RTN 600 ODUs that the OptiX RTN 905 supports

Item
High-Power ODU
Standard Power ODU
ODU type
HP, HPA
SP, SPA
Frequency band
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP ODU)

6/7/8/11/13/15/18/23 GHz (HPA ODU)
7/8/11/13/15/18/23/26/38 GHz (SP ODU)

6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation
256QAM
256QAM
Channel spacing
7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz)
7/14/28 MHz (10.5 GHz)
3.5/7/14/28 MHz

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

RTN 905 microwave transmission IDU 905 1E

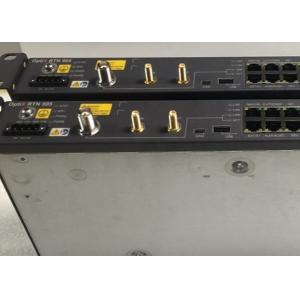

Quality RTN 905 microwave transmission IDU 905 1E for sale

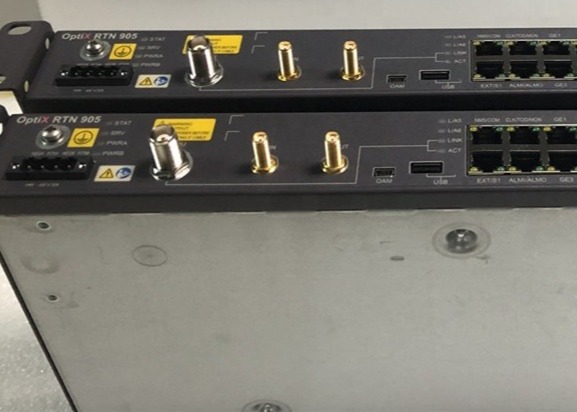

RTN 905 microwave transmission IDU 905 1E Images
