Microwave RTN 620 IDU RTN620

Name: Microwave RTN 620 IDU RTN620
Brand: Huawei
Price: 1 USD

Quality Microwave RTN 620 IDU RTN620 for sale

Model Number : RTN620

Place of Origin : China

Brand Name : Huawei

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

RTN620 : 2U Rack

Contact Now

Product Description

Network Application

The OptiX RTN 600 radio transmission system is a short haul digital microwave transmission system developed by Huawei Technologies Co., Ltd.
Each radio frequency (RF) carrier of the RTN 600 system can transmit 4/8/16xE1 or 1xSTM-1.
The RTN 600 can provide back haul links in a private network or a mobile telecommunication network, and can also network with optical transmission systems.

Components

The OptiX RTN 600 adopts a split structure. The system consists of the indoor unit (IDU) and the outdoor unit (ODU). An ODU is connected to an IDU through a coaxial cable.

The IDU has two types as follows:
1. IDU 610: 1U; one IF board; supporting 1+0 non-protection configuration.
2. IDU 620: 2U; one to four IF boards; supporting 1+0 non-protection configuration and 1+1 configuration.

Interface Type	Specifications	IDU 610	IDU 620
PDH interface	75/120-ohm E1 interface	16	64
SDH interface	STM-1 optical interface: Ie-1, S-1.1, L-1.1, L-1.2	2^a	8^b
SDH interface		STM-1 optical interface: Ie-1, S-1.1, L-1.1, L-1.2	2^a	8^b
Ethernet service interface	10M/100M BASE-T(x) interface	4	16
External clock interface	75-ohm 2048 kHz/ or 2048 kbit/s external clock interface	1	2
Auxiliary interface	Orderwire interface	1	1
		Wayside (WS) interface (the external clock interface)	1	2
		RS232 asynchronous data interface	1	1
Management interface	10/100BASE-T(x) NM interface	1	1
		10/100BASE-T(x) NE cascade interface	1	1
		Management serial port	1	1
Alarm interface	Alarm input/out interface	6 inputs + 2 outputs	6 inputs + 2 outputs

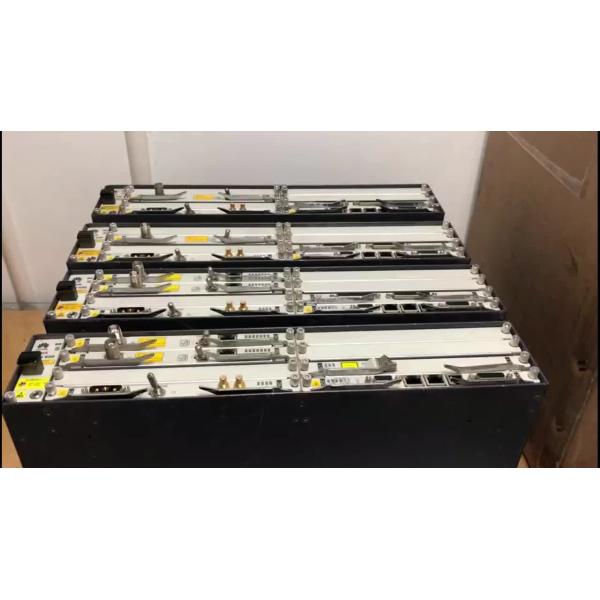

Microwave RTN 620 IDU RTN620 Images
