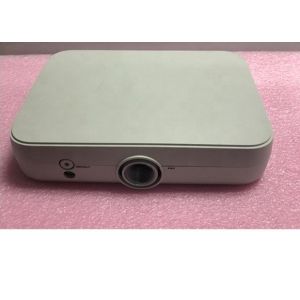

RTN 510 Sub 6G microwave Remote Treminal RTN510 RT

Model Number : RTN510 RT

Place of Origin : China

Brand Name : Huawei

Packaging Details : Export carton package

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model : RTN 510 RT

Frequency band : 4.910 to 5.970 GHz

Channel spacing : 10/20/40/80 MHz

Modulation : MCS0 (BPSK) to MCS9 (256QAM)

AP Switching capacity : 200 Mbit/s to 3.8 Gbit/s

RT Switching capacity : 100 Mbit/s

Contact Now

RTN510 Sub 6G microwave transmission Remote Treminal RTN 510RT

The RTN 510 supports PtP network, 90° PtMP networking and RT relay networking.

Model
Description
RTN510 MainEquipmet
02312AAE
SLM1DM31
RTN510 Microwave,4.91~5.97GHz,AP,with installation material
02312AAG
SLM1DS11
RTN510 Microwave, 4.91~5.97GHz, RT, antenna integrated, with installation material
SFP Suit
02230WVY
SLESSFPK01
single-mode eSFP kit (for GE or 1.25G CPRI),10km
02230WWA
SLEMSFPK01
multi-mode eSFP kit (for GE or 1.25G CPRI),0.55km
Additional Function
88034NNA
SLML40MS01
RTN510 Microwave Basic Capacity License (Up to 40M) (per RT)
88034NNB
SLMULIMS01
RTN510 Microwave Extended Capacity License (Above 40M) (per RT)
88034NNC
SLMEETMS01
RTN510 Enhanced Ethernet Traffic Management License (per RT)
88034WMM
SLMEETMS02
RTN510 Enhanced Ethernet Traffic Management License (Per AP)
88034NPH
SLMAESES01
RTN510 AES Encryption Function (Per RT)
88034WMG
SLMPTPFS01
RTN510 PTP Function Enable RTU (Per Antenna)
88034WLY
SLMAESES02
RTN510 PTP AES Encryption Function (Per AP)

The RTN510 system consists of the access point (AP) and the remote terminal (RT). RTs are highly-integrated outdoor case-shaped devices using a built-in antenna. The RT receives services from terminals and transmits them to the AP. The AP uses an external antenna. It aggregates services from multiple RTs and transmits them to the upper-layer network.

Item
RTN510 Description
AP
RT
Frequency band
4.910 to 5.970 GHz
4.910 to 5.970 GHz
Channel spacing
10/20/40/80 MHz
10/20/40/80 MHz
Modulation
MCS0 (BPSK) to MCS9 (256QAM)
MCS0 (BPSK) to MCS9 (256QAM)
Switching capacity
200 Mbit/s to 3.8 Gbit/s
100 Mbit/s
Service port
One GE optical port

Two GE electrical ports (one for power over Ethernet (PoE))
One GE electrical port (for PoE)

RTN310
RTN360
RTN380
Support frequency
13/15/18/23/38GHz
59-64GHz
71-86GHz
Channel spacing
7/14/28/56MHz
200MHz
62.5/125/250/500/750MHz
Modulation mode
QPSK Strong~2048QAM Light
160QAM
QPSK Strong~64 QAM
Throughput
2Gbps Max
400Mbps
4Gbps Max
Business interface
GE
GE
GE, CPRI interface
USB interface
Support
Support
Support
Working environment
Working temperature : -35℃~+55℃
Relative humidity: 5%~100%
Power supply range
Support Ethernet power supply;
Support DC power : -38.4V ~ -57.6V
Weight
6kg
2.5kg
3.8kg

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
