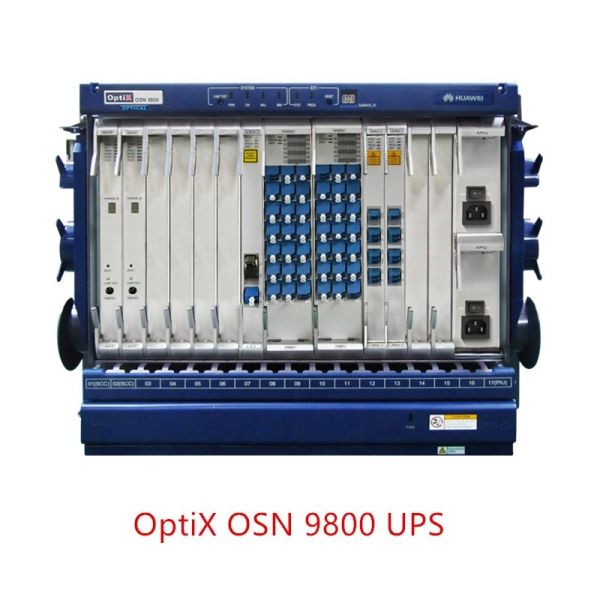

DWDM OSN 9800 U32 OTN T120S Board TNV1T120S TNV1T120SS01

Name: DWDM OSN 9800 U32 OTN T120S Board TNV1T120S TNV1T120SS01
Brand: Huawei
Price: 1 USD

Model Number : OSN 9800 U32

Brand Name : Huawei

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Place of Origin : China

Certification : CE FCC RoHS

MOQ : Negotiable

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Type : Transmission

Model : TNV1T120SS01

OSN 9800 U32 Dimensions : 1900x498x295mm

OSN9800 U32 Installation Rack : ETSI 300/600mm rack

Heat Dissipation : Fan

Power Supply : -48VDC/-60VDC

Rate per Channel (Max.) : 100G, 200G, 400G, 1T, 2T

Service Types Supported : SDH, SONET, Ethernet, SAN, OTN, video

Contact Now

Product Introduction

DWDM OSN 9800 U32 OTN Tributary Boards T120S TNV1T120S TNV1T120SS01

Product Specification

The Huawei OptiX OSN 9800 Specifications:

Specifications			OSN 9800 U16	OSN 9800 U32	OSN 9800 U64
Dimensions (HxWxD)			847x442x295mm	1900×498x295mm	2200x600x600mm(with cabinet)
Number of Service Slots			14	32	64
Switching Capability	Optical	Up to 20-degree C-D-C-G ROADM
Switching Capability		Electrical	5.6Tbit/s universal switching	6.4 /12.8Tbit/s universal switching	12.8/25.6Tbit/s universal switching
Number of Ports	Max OTU4 Ports	28/56	64/128	128/256
		Max 100GE Ports	28/56	64/128	128/256
		Max OTU3 Ports	28	64	128
		Max 40GE Ports	28	64	128
		Max OTU2 Ports	280	640	1280
		Max 10G Ports	280	640	1280
		Max GE/2.5G Ports	420	960	1920
		Max OTUC2 Ports	14	32	64
		Max OTUC4 Ports	7/14	16/32	32/64
Channel Spacing			50/100GHz fixed grid for 40/80-ch
Channel Spacing				Flex-grid
Wavelength Range			DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
Rate per Channel (Max.)			100G, 200G, 400G, 1T, 2T
Service Types Supported			SDH, SONET, Ethernet, SAN, OTN, video
Topology			Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection	Equipment	1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection
Redundancy and Protection		Network	OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1 protection,LPT, ASON/GMPLS PKT: PW APS, Tunnel APS, LAG
Optical Power Management			ALS, AGC, ALC, APE, IPA
Synchronization			IEEE 1588v2, Sync-E
				2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source
				External clock source (1PPS+TOD)
ASON/GMPLS			Automatic network discovery
				ODUk/λ level protection and restoration
				5-Level SLA (Service Level Agreement) provisioning
				End-to-end service configuration
				Shared Risk Link Group (SRLG)
				Traffic engineering
T-SDN			Automation, IP+Optical , BOD
Installation Rack			ETSI/19 inch rack	ETSI 300/600mm rack	ETSI 600mm rack
Heat Dissipation			Fan
Power Supply			-48VDC/-60VDC
Operation Environment			Temperature: Long-term operation: 5°C to 40°C Short-term operation: -5°C to 45°C
Operation Environment				Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90%
