02311SSE TNV3T402C21 DWDM OSN 9800 2 x 100 Gbit/s Tributary Service Processing Board TNV3T402

Name: 02311SSE TNV3T402C21 DWDM OSN 9800 2 x 100 Gbits Tributary Service Processing Board TNV3T402
Brand: Huawei
Price: 1 USD

Quality 02311SSE TNV3T402C21 DWDM OSN 9800 2 x 100 Gbit/s Tributary Service Processing Board TNV3T402 for sale

Model Number : OSN 9800 U64

Place of Origin : China

Brand Name : Huawei

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model : TNV3T402C21

OSN 9800 U64 Dimensions : 2200x600x600mm(with cabinet)

OSN 9800 U32 Dimensions : 1900x498x295mm

OSN 9800 U16 Dimensions : 847x442x295mm

OSN9800 U64 Installation Rack : ETSI 600mm rack

OSN9800 U32 Installation Rack : ETSI 300/600mm rack

OSN9800 U16 Installation Rack : ETSI/19 inch rack

Power Supply : -48VDC/-60VDC

Rate per Channel (Max.) : 100G, 200G, 400G, 1T, 2T

Service Types Supported : SDH, SONET, Ethernet, SAN, OTN, video

Contact Now

Product Introduction

02311SSE TNV3T402C21 2 x 100 Gbit/s Tributary Service Processing Board(CFP2)(2*CFP 2-1310nm-OTU4/100GE-10km)

Huawei Optix OSN 9800 U64 boards

TNV1T130
TNV1T120S
TNV1T210
TNV2T210
TNV2T220
TNV3T210
TNV3T220
TNV3T230
TNV1T302
TNV2T302
TNV1T401
TNV3T401
TNV1T402
TNV3T402
TNV2T404
TNV3T404
TNV2T220E
TN12D40
TN12M40
TN12M40V
TN11ITL06
TN13FIU
TN16FIU
TN52DAP
TN52DAPXF
TN13OAU1
TN13OBU1
TN11SRAU

TNV2N220
TNU2N401
TNU3N401
TNV2N401
TNU5N401
TNU2N402
TNU3N402
TNV2N402
TNU5N402
TNU4N404
TNU5N404
TNU1N401P
TNU2N402P
TNU1N501
TNU2N501
TNU1N601
TN51MCS0816
TN12TD20
TN13TM20
TN15TM20
TN17WSMD4
TN15WSMD9
TN15DWSS20
TN51DWSS20
TN52DWSS20

TNV1U210
TNU2U401
TNV2U401
TNU3U401
TNU4U401
TNU4U402
TNV2G210
TNV2G220
TNU1G404
TNU1G402
TNV1E124
TNV1E401
TNV1E302
TNV1E212
TNV1E208
TNV1EC116
TNV1EC404
TN11AST2
TN51LMU
TN13ST2
TN13DCP
TN13OLP
TN11QCP
TN12OPM8
TN15OPM8
TN13VA4

TNV1S216
NP400NP400E
TNV1SXCL
TN12LDX
TN13LQM
TN17LSC
TN18LSC
TN11LDC
TN17LSCM
TN15LSXL
TN14LSX
TN15LTX
TN17LTX
TN55NO2
TN53NQ2
TN54NS4
TN97ASE
TN97D48
TN97ERPC
TN97M48V
TN97OAU2
TN97ITL04
TN97OPM8
TN97TM20
TN96WSD9
TN96WSM9

Product Specification

The Huawei OptiX OSN 9800 Specifications:

Specifications			OSN 9800 U16	OSN 9800 U32	OSN 9800 U64
Dimensions (HxWxD)			847x442x295mm	1900×498x295mm	2200x600x600mm(with cabinet)
Number of Service Slots			14	32	64
Switching Capability	Optical	Up to 20-degree C-D-C-G ROADM
Switching Capability		Electrical	5.6Tbit/s universal switching	6.4 /12.8Tbit/s universal switching	12.8/25.6Tbit/s universal switching
Number of Ports	Max OTU4 Ports	28/56	64/128	128/256
		Max 100GE Ports	28/56	64/128	128/256
		Max OTU3 Ports	28	64	128
		Max 40GE Ports	28	64	128
		Max OTU2 Ports	280	640	1280
		Max 10G Ports	280	640	1280
		Max GE/2.5G Ports	420	960	1920
		Max OTUC2 Ports	14	32	64
		Max OTUC4 Ports	7/14	16/32	32/64
Channel Spacing			50/100GHz fixed grid for 40/80-ch
Channel Spacing				Flex-grid
Wavelength Range			DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
Rate per Channel (Max.)			100G, 200G, 400G, 1T, 2T
Service Types Supported			SDH, SONET, Ethernet, SAN, OTN, video
Topology			Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection	Equipment	1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection
Redundancy and Protection		Network	OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1 protection,LPT, ASON/GMPLS PKT: PW APS, Tunnel APS, LAG
Optical Power Management			ALS, AGC, ALC, APE, IPA
Synchronization			IEEE 1588v2, Sync-E
				2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source
				External clock source (1PPS+TOD)
ASON/GMPLS			Automatic network discovery
				ODUk/λ level protection and restoration
				5-Level SLA (Service Level Agreement) provisioning
				End-to-end service configuration
				Shared Risk Link Group (SRLG)
				Traffic engineering
T-SDN			Automation, IP+Optical , BOD
Installation Rack			ETSI/19 inch rack	ETSI 300/600mm rack	ETSI 600mm rack
Heat Dissipation			Fan
Power Supply			-48VDC/-60VDC
Operation Environment			Temperature: Long-term operation: 5°C to 40°C Short-term operation: -5°C to 45°C
Operation Environment				Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90%

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

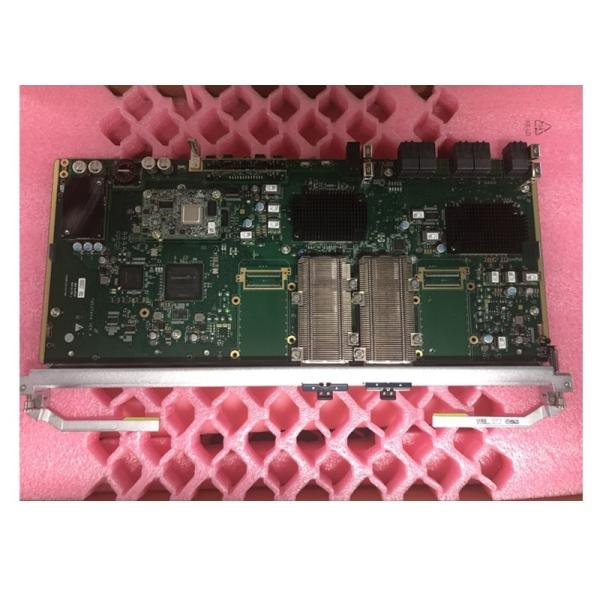

02311SSE TNV3T402C21 DWDM OSN 9800 2 x 100 Gbit/s Tributary Service Processing Board TNV3T402 Images
