NIX-53 Hybrid Microwave Transmission 0.5U NIX53

Model Number : NIX-53

Place of Origin : China

Brand Name : Huawei

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

Certification : CE FCC RoHS

MOQ : Negotiable

Packaging Details : Export carton package

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

NIX-53 Chassis : 0.5U

IDU Dimensions (H x W x D mm ) : 22 x 483 x 280 mm

ODU Dimensions (H x W x D mm ) : 279 x 240 x 92 mm

IDU Weight (kg ) : 3 KG

ODU Weight (kg ) : 6.6 KG

Power Consumption : 60W (1+0), per system

Power Supply Voltage : -48V DC

Contact Now

Product Description

NIX-53 Hybrid Microwave Transmission 0.5U NIX53

Hybrid Microwave Transmission Solution NIX-53

Comba NIX-53 system offers full support for TDM services, as well as a rich set of advanced Carrier Ethernet services providing a wide range of new capabilities that meets the needs of mobile backhaul, ISPs, utilities, government and private networks.
NIX-53 coupled with full suite of management system (Web GUI and B/S T-NMS) simplify network provisioning and monitoring, and meet the most stringent SLAs.

NIX-53 Product Features
- 6-38GHz licensed bands
- ETSI & FCC channels: 7-112MHz
- QoS supported
- 10-1000 Mbps per radio carrier
- Nodal achitechture
- ACM supported: QPSK-2048QAM
- Integrated Ethernet switch

Product Specification
Type
NIX-53 Specification
Radio Parameters
Frequency Band
6 / 7 / 8 / 11 / 13 / 15 / 18 / 23 / 26 / 28 / 32 / 38GHz
Channel Bandwidth
ETSI: 7, 14, 28, 56,112MHz
FCC: 10, 20, 30, 40, 50MHz
Modulation
QPSK/16QAM/32QAM/64QAM/128QAM/ 256QAM/512QAM /1024QAM/2048QAM, ACM
Transmission Capacity
Maximum 1000Mbps per carrier
Performance
System Configuration
1+0, 1+1 (HSB / SD / FD),2+0 ,MRC,E-W,
Features
Hitless ACM, ATPC, AGC, FEC
Interface
Ethernet
4 x 10/100/1000Base-T (RJ-45)
2 x 100/1000Base-X(SFP)
1 x 100/1000/2000 Base-X(Reserved)
E1/T1*
Up to 16 xE1/T1 (Programmable), 120Ω balanced (RJ-45) or 75Ω unbalanced (BNC) via Interface Adapter
STM-1*
Up to 1 x STM-1 (SFP)
Serial Port
RS-232 via RJ-45 connector
LED Indicator
RUN, IDU Alarm, ODU Alarm, ETH

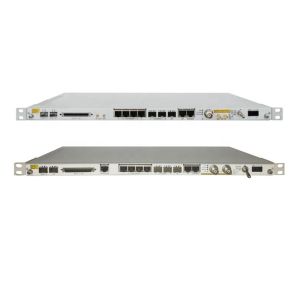

Quality NIX-53 Hybrid Microwave Transmission 0.5U NIX53 for sale
